Extract raster based on a polygon

raster 이미지의 일부를 추출해보자. 특히, shapefile에 담겨져 있는 polygon에 해당하는 raster 를 추출해보자. raster 패키지의 crop 과 mask 함수를 이용할 수 있다.

# Create some data using meuse
library(raster)
data(meuse)
coordinates(meuse) <- ~x+y
proj4string(meuse) <- CRS("+init=epsg:28992")
data(meuse.grid)
coordinates(meuse.grid) = ~x+y
proj4string(meuse.grid) <- CRS("+init=epsg:28992")
gridded(meuse.grid) = TRUE
r <- raster(meuse.grid)
r[] <- runif(ncell(r))

# Create a polygon
f <- rgeos::gBuffer(meuse[10,], byid=FALSE, id=NULL, width=250,
                         joinStyle="ROUND", quadsegs=10)

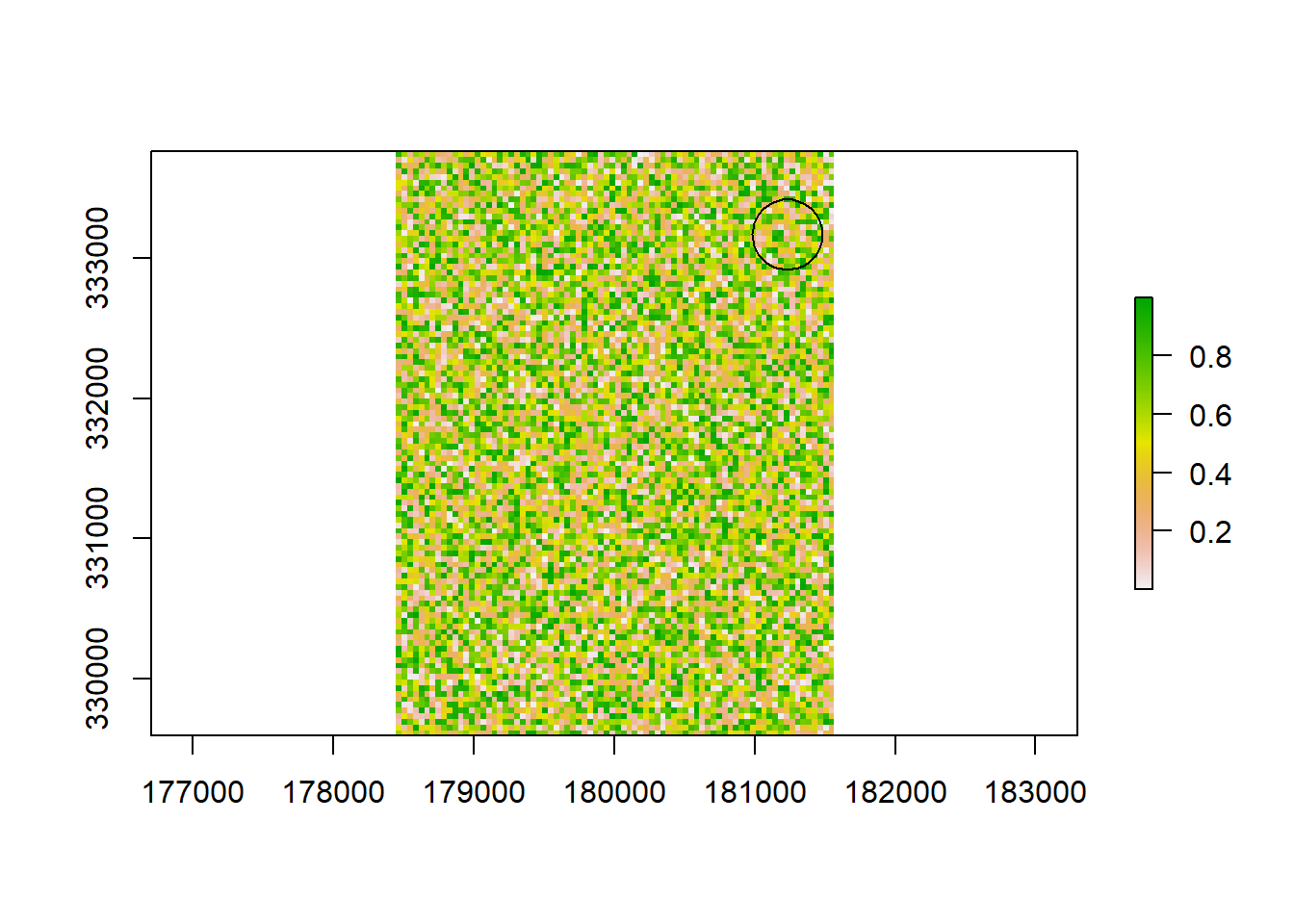

# Plot full raster and polygon
plot(r)
plot(f,add=T)

# Crop using extent, rasterize polygon and finally, create poly-raster
#          **** This is the code that you are after ****
cr <- crop(r, extent(f), snap="out")
fr <- rasterize(f, cr)
lr <- mask(x=cr, mask=fr)

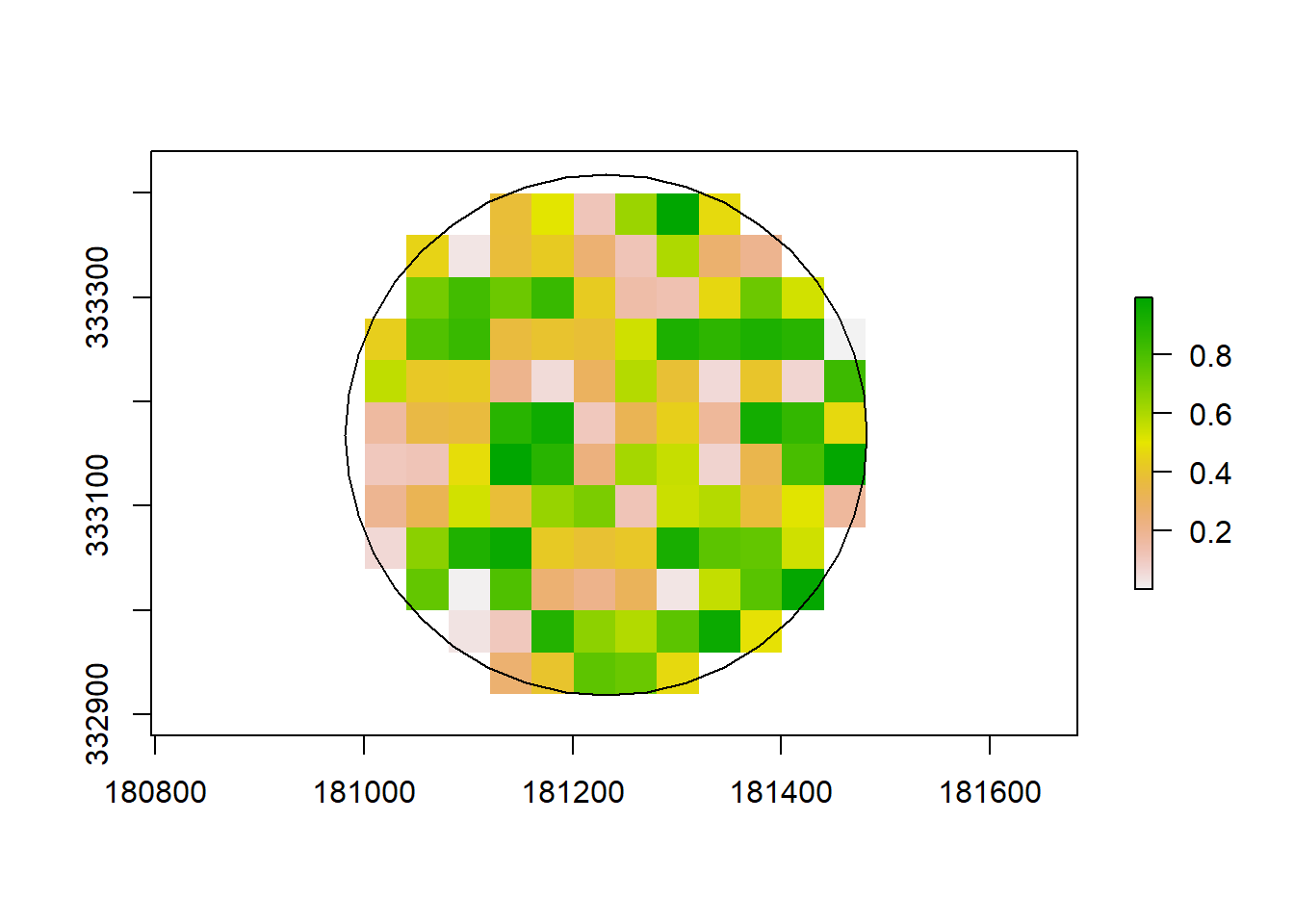

# Plot results
plot(lr)
plot(f,add=T)
